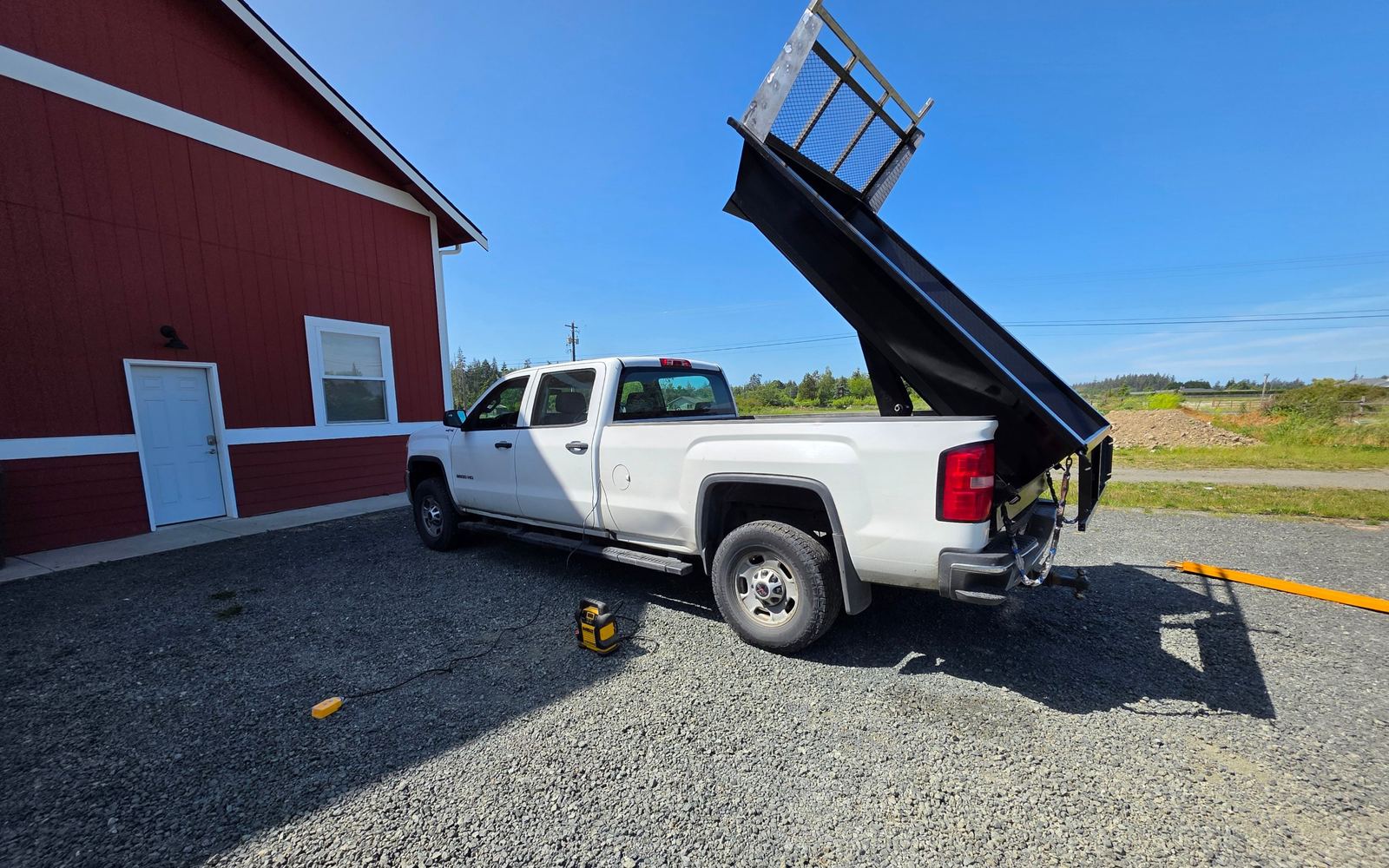

White GMC pickup with a black Tilt Titan dump insert raised

Hydraulic dump bed inserts · Made in USA

Turn your pickup into a dump truck.

Heavy-duty hydraulic dump inserts built for the toughest jobs.

Build your insert Watch it dump
Rated payload 6,000 lbs

See it work

Up and dumped at the push of a button.

The sealed 12V hydraulic pump runs off your truck battery. Press the button on the magnetic control box (it sticks to the truck on a 9′ cord) and the bed powers up to 46°, then powers back down.

  • Power up and power down
  • Sealed and weatherproof pump
  • Manual safety bar for working under the bed
  • Sold direct from our Sequim shop
“You should see the mouths of people open when you pull into the dump and you just push a button and everything dumps.”

Built for professionals

Mulch, rock, soil or debris. Back up, tilt, done.

Contractors

Haul demolition debris, gravel and equipment.

Landscapers

Unload mulch, rock and soil in seconds.

Farmers & ranchers

Move feed, manure and supplies with ease.

DIY homeowners

Yard cleanups, firewood and home projects.

Titan benefits

All the dump, none of the trailer.

  • No registrationNo trailer plates, tabs or special license.
  • No tires to wear outNothing extra to maintain or replace.
  • No special parkingUnlike a dump trailer, it stays in your pickup.
  • No trailering or special maneuveringNo hitching, no wiring, no backing a trailer.
  • No worry of theftIt stays on your truck.

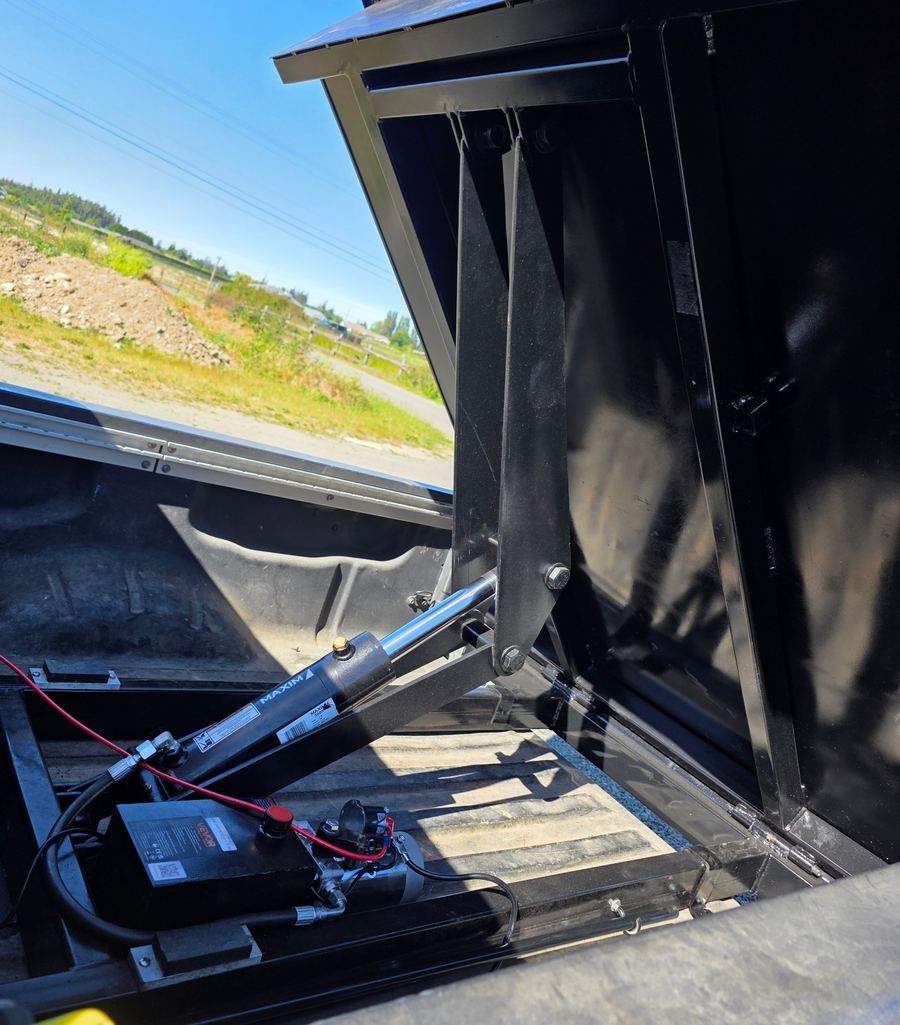

Hydraulic cylinder and steel lift arms under a raised Tilt Titan bed

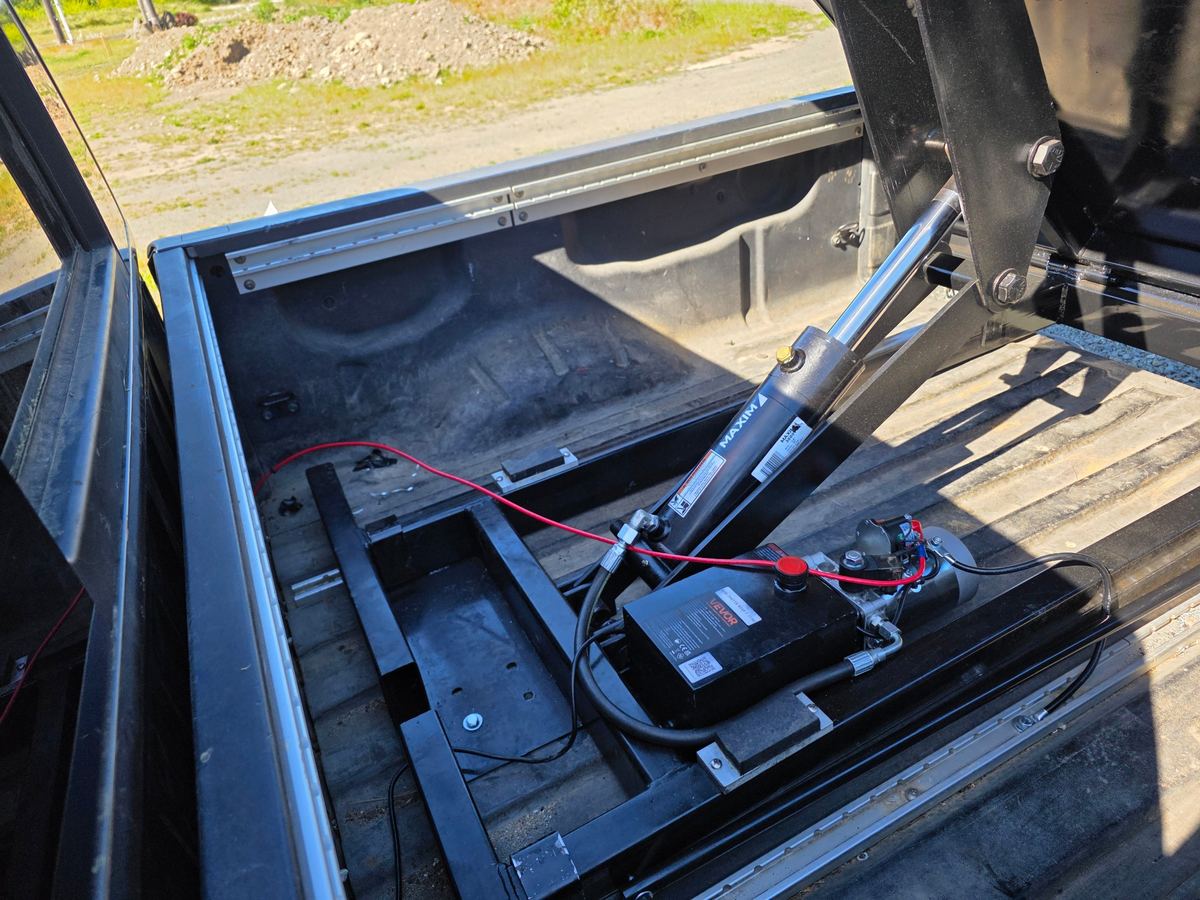

12V hydraulic power unit and cylinder mounted in the insert frame

Specifications

The numbers.

Payload
6,000 lbs rated
Capacity
1.5+ cubic yards (about 1 more with side boards)
Bed sizes
6½ ft and 8 ft
Frame
Structural steel, black enamel finish
Tilt
Up to 46°, hydraulic power up and power down
Pump
12V DC, weatherproof
Controls
Magnetic tethered control box, 9′ cord
Tailgate
Double-pivoting, removable steel
Safety
Manual safety bar
Mounting
Heavy steel bracket mounts
Warranty
2-year frame

Our models

Sized to your bed.

Call (360) 461-4390 for pricing, or build yours and we'll email a quote.

Additional items available

Make it yours.

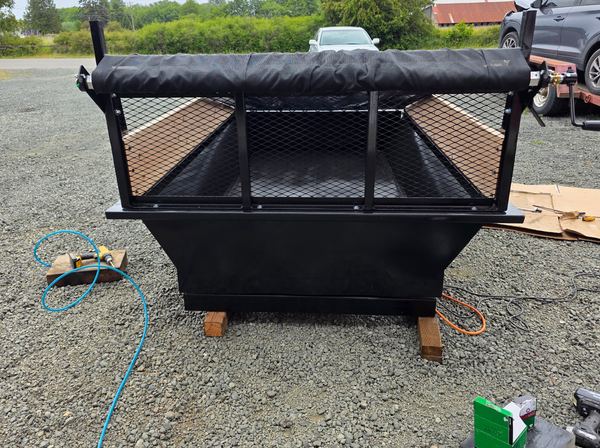

Steel mesh cab guard with roll-out tarp on the front of the insert
Cab guard +$400Steel mesh guard that protects the back window from shifting loads.

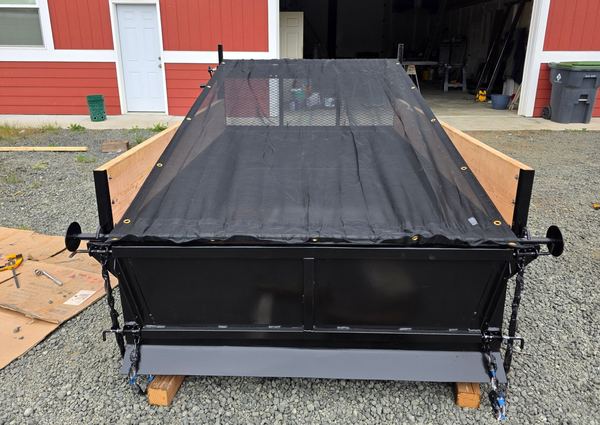

Mesh roll-out tarp pulled over a loaded insert
Tarp system +$400Crank the mesh tarp over the load to keep it in the bed.

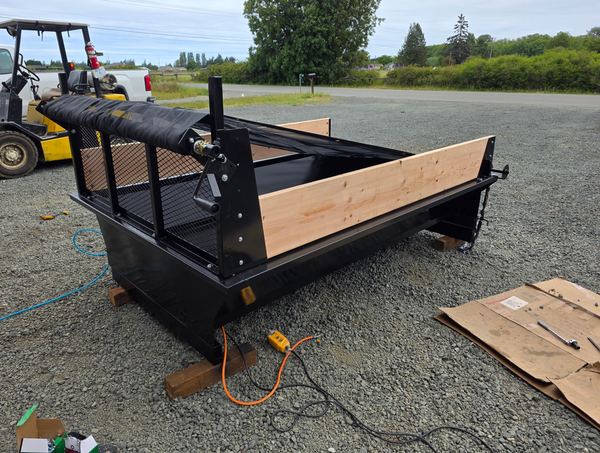

Insert fitted with wood side panels, cab guard and tarp roller
Side boards +$300Side brackets with side boards add about an extra cubic yard.
Custom setups Lumber racks, steel mesh sides or something else for your work. Call or add a note to your build.

Built strong. Works hard. Makes the job easier.

Order direct from our shop in Sequim, WA. Build yours online and we'll email your quote.

Build your insert Call (360) 461-4390

2-year frame warranty
